Anyone working with polymer materials will sooner or later encounter the same problem: after a while, something goes wrong.
Some materials turn yellow, some become brittle, some develop fine cracks on their surface, and some experience a gradual decline in mechanical properties. Most people would simply say, “It’s aged.” But if you dig deeper—asking what aging actually is, how it’s measured, and how to address it—the answers aren’t so straightforward.
Ultimately, aging isn’t something that can be summed up with a simple “the material’s no good.” It’s more like a process that requires careful, step-by-step analysis to understand. Only by understanding this process can you shift from passively dealing with headaches to actively taking control.

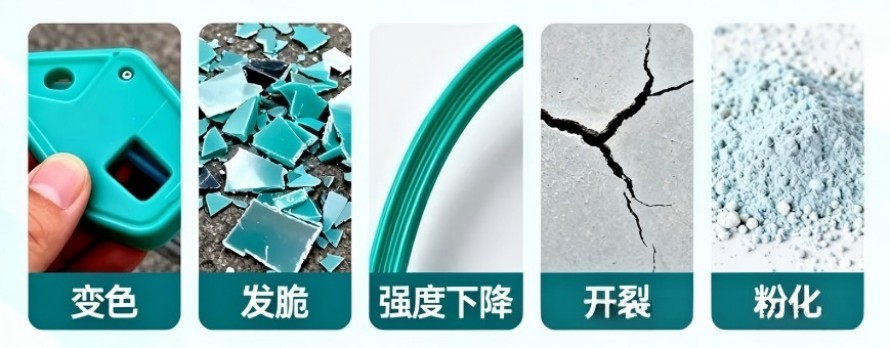

Plastic aging includes:
Discoloration
Brittleness
Decreased strength
Cracking
Chalking
01 | Aging Begins Quietly at the Molecular Chain Level
The aging of polymer materials does not happen suddenly one day. It begins quietly the moment the synthesis is complete and the material emerges from the mold.
At the microscopic level, a polymer is a system that is far from equilibrium. Chain segments can move freely; chemical bonds vary in strength; and the arrangement includes both tightly packed and loosely packed regions. Even the slightest external energy—heat, light, oxygen, moisture, or mechanical force—can cause local chain segments to rearrange, or lead to the breaking, oxidation, or cross-linking of certain chemical bonds.
To put it figuratively, the material is constantly searching for a “more comfortable position.” This search is the series of changes we observe: discoloration, cracking, and performance degradation. It cannot be completely prevented; it can only be understood and managed.
02 | Define the Standard First: What Counts as “Failed”?
Since aging is inevitable, the first thing to do—rather than rushing into testing—is to clarify a key question: For us, what kind of changes actually mean that a product is “no longer usable”?
The answers vary greatly across different industries. For automotive seals, the focus is on sealing performance and surface integrity; for semiconductor packaging, it’s the stability of electrical performance; and for outdoor cables, they must withstand the rigors of UV exposure.
Discussing aging without considering real-world scenarios is like using the wrong ruler to measure—you’ll waste effort without even hitting the right mark. Only by first aligning with the end-use environment and customer requirements—and defining aging metrics specific to your field—will subsequent testing and validation be meaningful.
03 | A Multi-Angle Approach to Building a Comprehensive Picture
To truly understand the stage of aging, focusing on a single indicator is far from sufficient. A comprehensive observation system can be built by examining several levels.
At the chemical level, examine changes in the molecular chains themselves. Use GPC to track molecular weight and determine whether chains have broken or cross-linked; use FTIR to detect newly emerging signals such as carbonyl and hydroxyl groups, which are markers of oxidation or hydrolysis; and use GC-MS to identify volatile small-molecule degradation products.
At the thermal level, assess the mobility of chain segments. DSC can monitor shifts in the glass transition temperature (Tg) and changes in crystallinity. It is worth noting that in the early stages of aging, degradation often begins in the “amorphous regions” where molecular arrangements are loose; these areas are not only more susceptible to oxygen and moisture penetration but also exhibit greater chain segment mobility.
At the mechanical level, we examine direct performance degradation. Tensile strength, elongation, modulus of elasticity, as well as long-term creep and fatigue behavior, are the most intuitive hard metrics.
At the surface and interface levels, we look for external signals of change. Colorimeters provide numerical values for color shifts, SEM and AFM reveal microscopic cracks, and XPS analyzes whether the surface chemistry has been altered.
For functional materials, we must also monitor electrical and optical parameters, such as resistivity and light transmittance.
Only by combining all this information can we piece together a comprehensive picture of aging—rather than relying solely on a single, isolated close-up.
04 | Accelerated Testing: Useful, but Must Be Applied Correctly
The natural aging process takes too long, and engineering cannot afford to wait. As a result, accelerated aging has become a common method: heating, intense UV exposure, humidity-heat cycling, and repeated mechanical stress.
However, there is one ironclad rule that cannot be compromised: the aging mechanisms under accelerated conditions must be consistent with those under normal operating conditions.
High temperatures can easily lead you astray. What proceeds slowly as oxidation at room temperature may take the cross-linking pathway directly at high temperatures. Since the pathways differ, the lifespan estimated based on high-temperature data will naturally be a world apart from reality.
Therefore, accelerated testing is better suited as a screening and design aid. To truly determine service life, it must be calibrated using long-term exposure data from real-world environments. If conditions permit, comparing the degradation products from accelerated testing and natural aging using FTIR or GC-MS can provide an additional layer of confidence.
05 | Five Key Approaches to Addressing Aging
When it comes to aging, the engineering approach has always revolved around two principles: delaying its onset and tolerating its occurrence.
First, chemical protection. The judicious use of antioxidants, UV absorbers, light stabilizers, and hydrolysis stabilizers directly interrupts the chemical reaction chain. However, it’s important to remember that these additives themselves are gradually depleted over time.
Second, physical isolation. Use coatings, barrier layers, and light-shielding layers to keep harmful factors out. Adding carbon black to outdoor cables to enhance UV resistance is a simple and effective approach.
Third, structural design. Build in safety margins during the design phase; make critical components redundant or replaceable, and position sensitive materials in locations less susceptible to damage.
Fourth, process control. During molding, reduce residual stress, control volatile residue, and strictly manage temperature, humidity, and raw material cleanliness to help materials build a stronger foundation for durability right from the source.
Fifth, maintenance strategies. During service, use online monitoring or periodic sampling to detect early signs of degradation, turning aging into a manageable process with advance warning and a planned approach, rather than a sudden, unexpected event.
06 | There are several common misconceptions and pitfalls that people keep falling into, so it’s worth pointing them out in advance.
Surface changes do not necessarily indicate overall failure. A change in color, surface peeling, or the appearance of microscopic cracks does not mean that mechanical properties will immediately collapse, but these are early warning signs of accelerated degradation and should not be ignored. Blindly pursuing high-temperature acceleration.
As mentioned earlier, high temperatures can trigger entirely different chemical reaction pathways, and service life estimates based on this are often inaccurate. Focusing on a single metric. On the surface, everything may appear fine, but the molecular weight may have already dropped significantly; the color may still be vibrant, but the strength may have already diminished. Only by evaluating multiple metrics in parallel can you reduce blind spots in your assessment.
Disconnecting from real-world usage scenarios. What a customer considers “broken” may be completely different from your understanding. Validation plans must be closely aligned with reality.
Ultimately, aging is not a “flaw” of polymer materials, but rather an inherent chapter in their life cycle. The shift from the helplessness of asking, “Why isn’t this material working again?” to the clear judgment that “under these conditions, this parameter is expected to reach its critical value at that point in time”—this transformation represents the leap from a reactive to a proactive engineering mindset.
Risks that can be quantified are no longer mere sources of anxiety. Once the nature of aging becomes clear, you can incorporate it into your design and management processes, transforming it into a predictable, preparable, and manageable process. In this way, even when aging occurs as expected, the product can continue to operate reliably within acceptable limits. This is likely the most composed attitude materials engineers can adopt when facing aging.
