“Although PPS rods offer excellent machinability, even the slightest misstep can result in dimensional deviations or even cracking—eight key factors, ranging from tool selection to temperature control, determine the success or failure of the machining process. Mastering techniques such as ‘intermittent cutting’ and ‘step-by-step machining’ allows this high-temperature-resistant material to fully realize its potential in precision parts.”

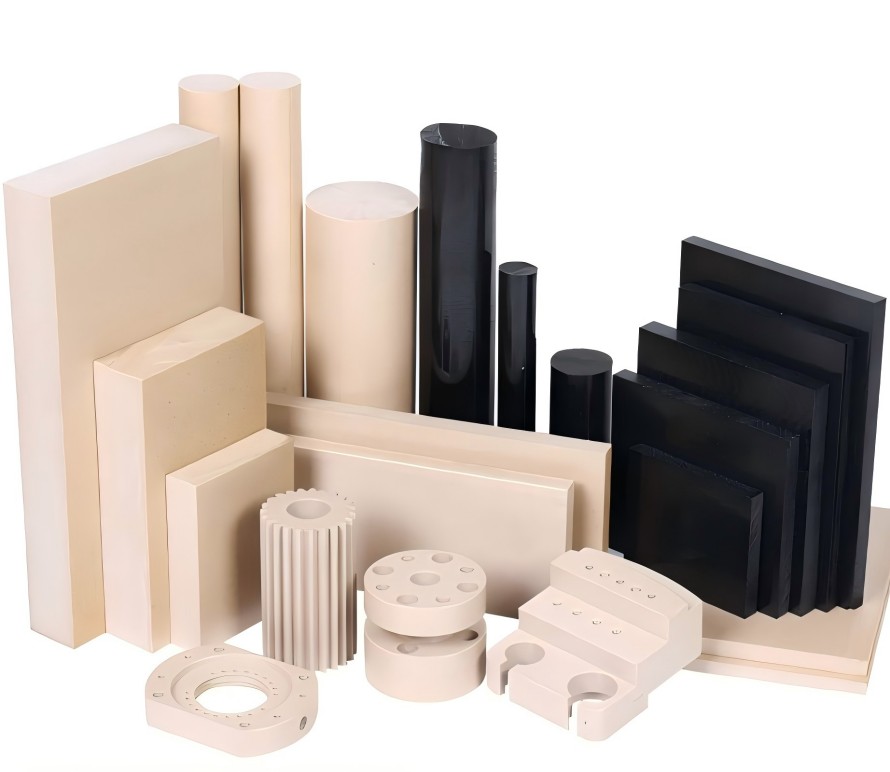

PPS rod is a high-performance engineering plastic characterized by high-temperature resistance, corrosion resistance, excellent dimensional stability, high mechanical strength, and superior electrical insulation properties. As a result, it is widely used in the electronics, electrical, semiconductor, chemical, and machinery manufacturing industries. Although PPS rod offers good machinability, several factors must be carefully considered during the machining process; otherwise, issues such as dimensional deviations, surface defects, and even material cracking may occur.
Material Condition Inspection
Before machining, inspect the appearance and internal condition of the PPS rods. Ensure that the material surface is free of visible cracks, bubbles, impurities, and mechanical damage. For materials that have been in storage for an extended period, check for signs of moisture absorption.
Although PPS has a low water absorption rate, moisture absorption can still affect dimensional stability in high-precision machining applications. Therefore, for the machining of precision parts, appropriate pre-drying treatment may be performed when necessary to ensure machining quality.
Selecting the Right Machining Equipment
PPS rods can be machined using standard lathes, milling machines, drilling machines, CNC machining centers, and other equipment. Due to the material’s high hardness and the fact that some reinforced grades of PPS contain glass fibers or mineral fillers, tool wear is significant.
Machining equipment should possess good rigidity and stability to prevent increased surface roughness or reduced dimensional accuracy caused by vibration. For high-precision parts, it is recommended to use CNC equipment for machining to improve dimensional consistency.
Tool selection is critical
When machining PPS rods, sharp carbide tools should be prioritized.
Dull tools increase cutting resistance, which generates excessive cutting heat and compromises surface finish quality. This is particularly true when machining reinforced PPS materials, where glass fibers and mineral fillers accelerate tool wear; therefore, tools must be inspected regularly and replaced promptly.
Common machining recommendations are as follows:
1. Use carbide turning tools for turning;
2. Use carbide end mills for milling;
3. Use specialized plastic drill bits or carbide drill bits for drilling;
4. During the finishing stage, use smaller feed rates to improve surface quality.
Controlling Cutting Temperatures
PPS has high heat resistance, but significant heat is still generated during high-speed cutting.
Excessive local temperatures may lead to the following issues:
- Yellowing or discoloration of the surface;
- Local melting;
- Dimensional changes;
- Deterioration of surface roughness;
- Increased internal stress.
Therefore, cutting speed and feed rate should be properly controlled during machining to avoid prolonged continuous high-speed cutting.
For the machining of complex parts, intermittent cutting can be used to reduce heat buildup.
Preventing Processing Distortion
Although PPS offers better dimensional stability than many common engineering plastics, distortion can still occur during processing.
The main causes of distortion include:
- Release of internal residual stresses;
- Excessive clamping force;
- Accumulation of cutting heat;
- Excessive material removal.
To minimize warpage, the following measures can be taken:
First, use proper clamping methods to avoid excessive clamping force.
Second, employ a step-by-step machining process: perform rough machining first, leaving an appropriate allowance, followed by finish machining.
For parts with tight dimensional tolerances, allow the material to rest for a period after rough machining to allow internal stresses to release before proceeding with finish machining.
Precautions for Drilling
Drilling is a common process in the machining of PPS rods.
Due to the material’s high rigidity, long chips are likely to form during drilling. If chip removal is not smooth, this may cause scratches on the hole walls or dimensional errors.
When drilling, observe the following precautions:
- Use a sharp drill bit;
- Reduce the feed rate appropriately;
- Periodically retract the drill to clear chips;
- Use the step-drilling method for deep holes.
For high-precision holes, reaming can be used to further improve dimensional accuracy and hole wall quality.
Thread Machining Issues
PPS rods can be machined to produce both internal and external threads.
During machining, avoid cutting too deeply in a single pass, as this can easily result in incomplete thread profiles or localized chipping.
For smaller-sized threads, tapping with a tap is recommended.
For larger-sized threads, CNC turning can be used.
After thread machining is complete, inspect the thread profile integrity and fit accuracy to ensure they meet assembly requirements.
Surface Quality Control
PPS rods can achieve a good surface finish after proper machining.
The main factors affecting surface quality include:
- Tool sharpness;
- Cutting parameters;
- Machine rigidity;
- Vibration levels;
- Internal structure of the material.
If burrs, tool marks, or burn marks appear on the surface, machining parameters should be adjusted promptly.
If necessary, finishing processes such as precision turning, precision milling, or polishing can be used to further improve the surface finish.
Note the Unique Characteristics of Reinforced PPS

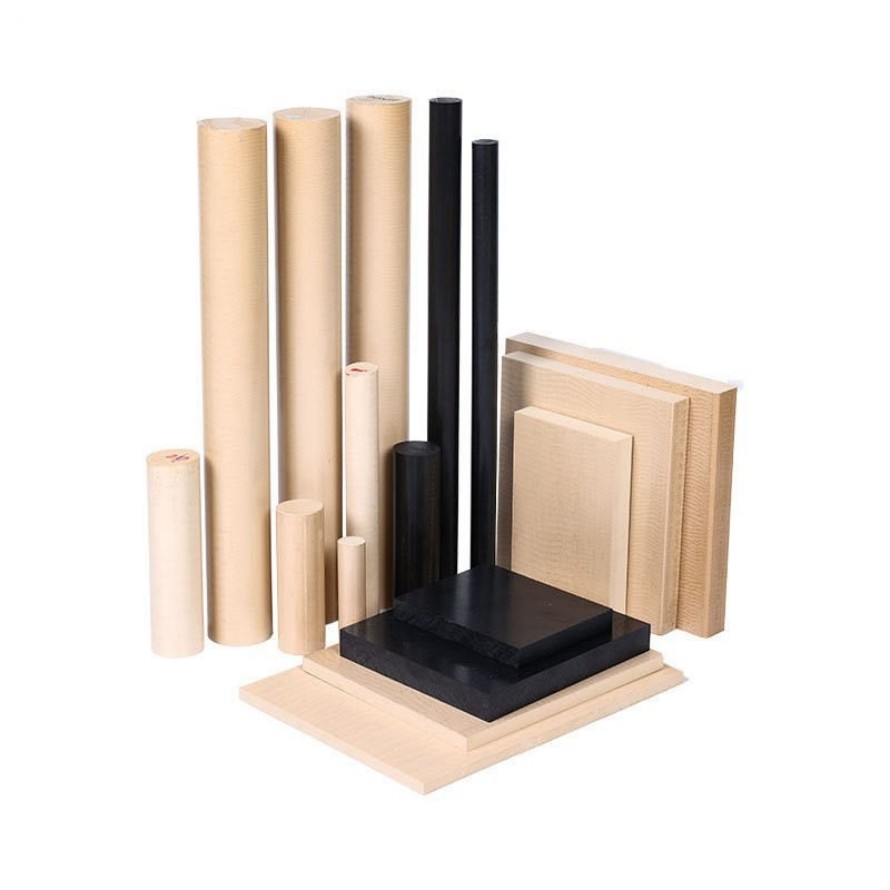

PPS rods available on the market include not only virgin grades but also modified products such as glass-fiber-reinforced, carbon-fiber-reinforced, and mineral-filled grades.
Although reinforced grades offer higher strength and stiffness, they also present greater machining challenges.
These challenges primarily manifest as:
Accelerated tool wear;
Increased surface roughness;
Greater load on machining equipment;
More stringent cutting parameter requirements.
Therefore, when machining reinforced PPS, it is necessary to adjust the cutting tools and machining processes according to the specific material type.
Post-Machining Dimensional Inspection
Upon completion of machining, dimensional inspection and quality control should be conducted promptly.
Key inspection items include:
Outer diameter;
Bore diameter;
Flatness;
Coaxiality;
Perpendicularity;
Surface roughness.
For parts used in semiconductor equipment, electronic components, or precision machinery, more stringent dimensional tolerance inspections should also be performed.
Summary
Although PPS rods offer excellent machinability and dimensional stability, key considerations during actual machining include tool selection, cutting temperature control, clamping methods, chip removal during drilling, stress relief, and dimensional inspection. By establishing appropriate machining processes, controlling cutting parameters, and making adjustments based on the characteristics of different grades of PPS material, it is possible to effectively improve machining efficiency and finished product quality, resulting in stable and reliable precision parts.
